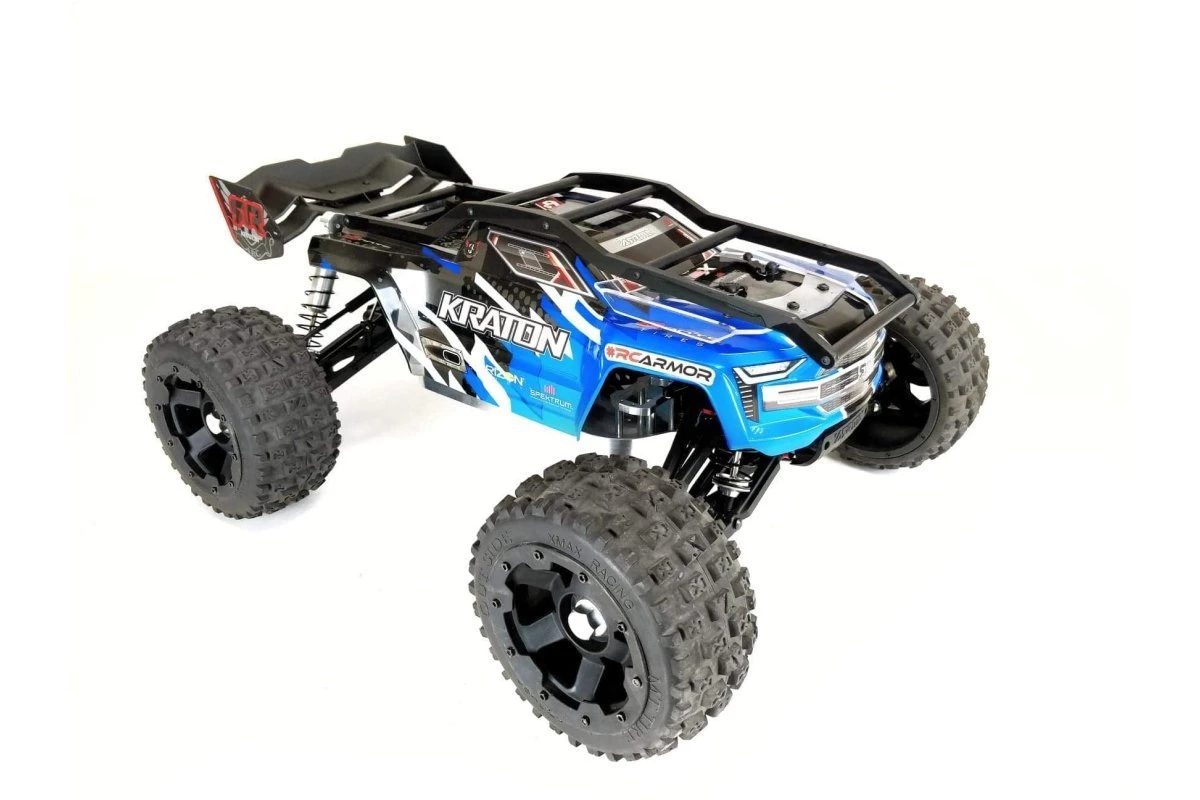

10148 | T-Bone Racing Black ARRMA V5 R2 EXO External Roll Cage

This cage mounts directly to to the body independent of body posts and shock towers.

• 1Pc Arrma Kraton EXO Roll Cage w/mounting hardware.

 Fitment

Does not fit any cars other than the Kraton (Fits all bodies)

Body and Kraton not included.

Only fits the V4 V5 And EXB Kraton

Does not fit on the V1, V2, V3 Kraton

IMPORTANT NOTES:

1. The roll cage requires you to ream or drill out mounting holes in the Kraton body in order to mount the cage.

2. The Kraton EXO Cage can be very tricky to install due to the cage being raised up off of the body, it is difficult to line up the front and rear mounting holes of the cage to the body.

• Line up the EXO Cage to the position on your truck that you desire.
• Mark the mounting hole positions with a reamer or marker.
• Ream or drill the holes to the correct size. (M4 Screw Size)
• Using the supplied hardware mount the cage to the body with two mounting plates on outside of the body and two on the inside, securing them with the screws and locknuts.
